Proper Plumbing for a disc/drum & disc/disc system

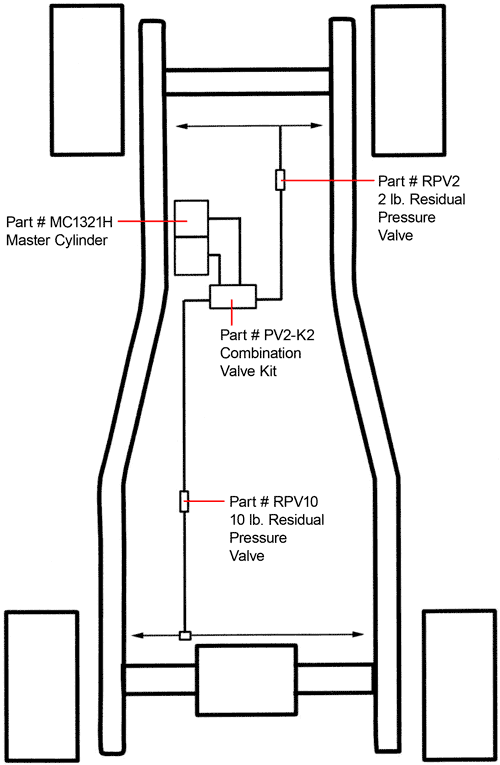

How to plumb your rod for a disc/drum system with the Master Cylinder under the floor.

Note: For disc/drum above the floor eliminate RPV2.

 How to plumb your rod for a disc/drum system with the Master Cylinder under the floor

How to plumb your rod for a disc/disc system with the Master Cylinder under the floor.

Note: For disc/disc above the floor eliminate RPV2's.

 How to plumb your rod for a disc/disc system
